HTML Markers with `element`

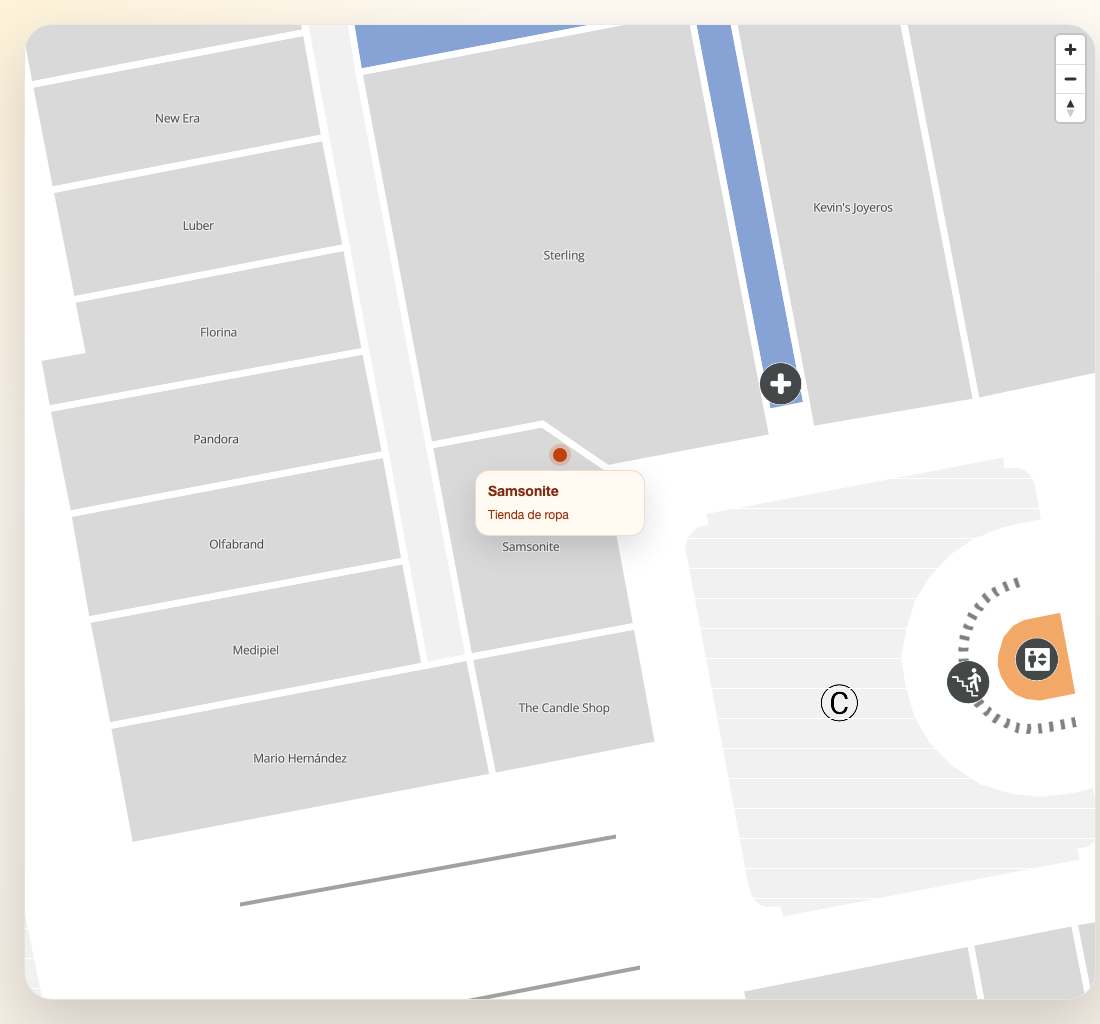

Custom HTML marker displayed as a place card on the map

Use element when the marker should be a complete custom DOM tree instead of the SDK’s built-in icon and text layout. This is the best fit for branded place badges, mini popovers, or markers that need internal structure.

Why `element` instead of `icon`

icon customizes only the icon slot of the standard marker layout.
element replaces the full marker element.
element is ideal when you want logos, titles, categories, and custom spacing in a single node.

Example: place card marker

This pattern is adapted from richer web component integrations, but kept in plain DOM so it works in any framework.


function createPlaceMarkerElement(place: MVXPlace): HTMLDivElement {
  const element = document.createElement("div")
  element.className = "place-marker"

  const category = place.localizedCategory || place.generalCategory || place.category

  element.innerHTML = `
    <div class="place-marker__badge"></div>
    <div class="place-marker__card">
      <div class="place-marker__title">${place.title}</div>
      <div class="place-marker__meta">${category}</div>
    </div>
  `

  return element
}

const place = await sdk.getPlaceDetail("<PLACE_ID>")

map.addMarker({
  id: `html-${place.mapvxId}`,
  coordinate: place.position,
  floorId: place.inFloors?.[0],
  element: createPlaceMarkerElement(place),
  anchor: "bottom",
})


.place-marker {
  display: grid;
  justify-items: center;
  gap: 8px;
  transform: translateY(-6px);
}

.place-marker__badge {
  width: 14px;
  height: 14px;
  border-radius: 999px;
  background: #c2410c;
  box-shadow: 0 0 0 4px rgba(194, 65, 12, 0.18);
}

.place-marker__card {
  min-width: 170px;
  padding: 10px 12px;
  border-radius: 14px;
  background: #fffaf2;
  border: 1px solid rgba(194, 65, 12, 0.18);
  box-shadow: 0 12px 30px rgba(15, 23, 42, 0.14);
}

.place-marker__title {
  font-size: 14px;
  font-weight: 700;
  color: #7c2d12;
}

.place-marker__meta {
  margin-top: 4px;
  font-size: 12px;
  color: #9a3412;
}

Handling clicks

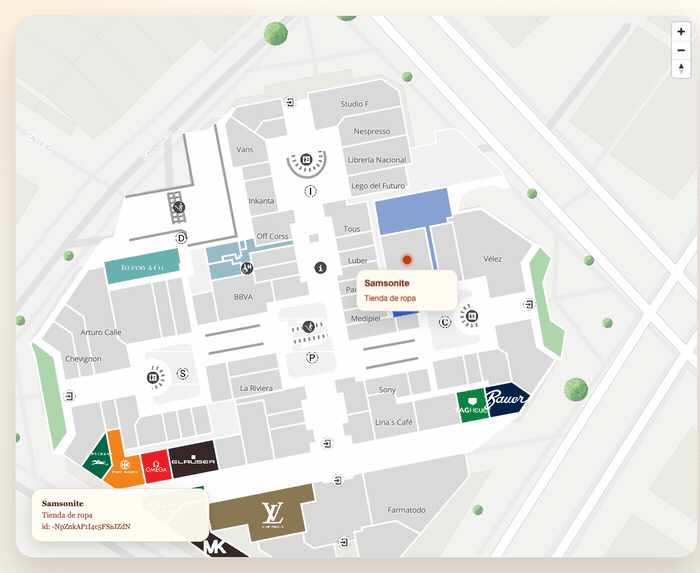

HTML marker click demo: selecting places with custom card markers

Attach listeners to the element before passing it to addMarker:


const element = createPlaceMarkerElement(place)
element.addEventListener("click", () => {
  map.setPlacesAsSelected([place.mapvxId], "#C2410C")
  map.addBorderToPlaces([place.mapvxId], "#7C2D12", 2)
})

map.addMarker({
  id: `interactive-${place.mapvxId}`,
  coordinate: place.position,
  floorId: place.inFloors?.[0],
  element,
  anchor: "bottom",
})

Performance considerations

Each HTML marker creates a real DOM node overlaid on the map. For a handful of markers (up to ~50) this works well and gives maximum flexibility. For hundreds of markers, prefer icon: string markers from Marker Icons — they are rendered more efficiently by MapLibre.

Good indoor defaults

For indoor markers based on real places:

set floorId to place.inFloors?.[0]
use anchor: "bottom" for pin-like cards
combine element with setPlacesAsSelected when the marker is tied to a polygon

For a fuller place-driven flow, continue with Places, Markers, and Routes.
